Tech Specs
Light Source
Lamp Wattage: 600W (LED module engine)
Color Temperature: 8500K
Movement
Pan: 540° (8/16 bit), Tilt: 270° (8/16 bit)
Quiet and precise 3-phase motors
Power Supply
Input Voltage: AC 100–240V, 50/60Hz
Power Consumption: 680W
Power Supply: 800W
Colors
Linear CMY color mixing system
5 colors + open
Variable CTO color temperature adjustment (2700K–8500K)
Prism
4-facet prism
Rotatable in both directions
Optics
Beam Angle: 3°–55°
Diameter of Optic Lens: 120 mm
Control
DMX Channels: 25 / 29 / 34
Control Modes: DMX512, RDM, self-propelled, master/slave
LCD Touch Pad
Cooling System
Advanced fan cooling system
Over-temperature protection
Gobos
8 static gobos + open
7 rotating gobos + open
Effect
Frost filter for smooth wash effect
Independent atomization effects
Dimmer/Strobe
0–100% smooth dimming
Variable-speed strobe effect
Size & Weight
Dimensions: 338 × 256 × 512 mm
Weight: 20.5 kg

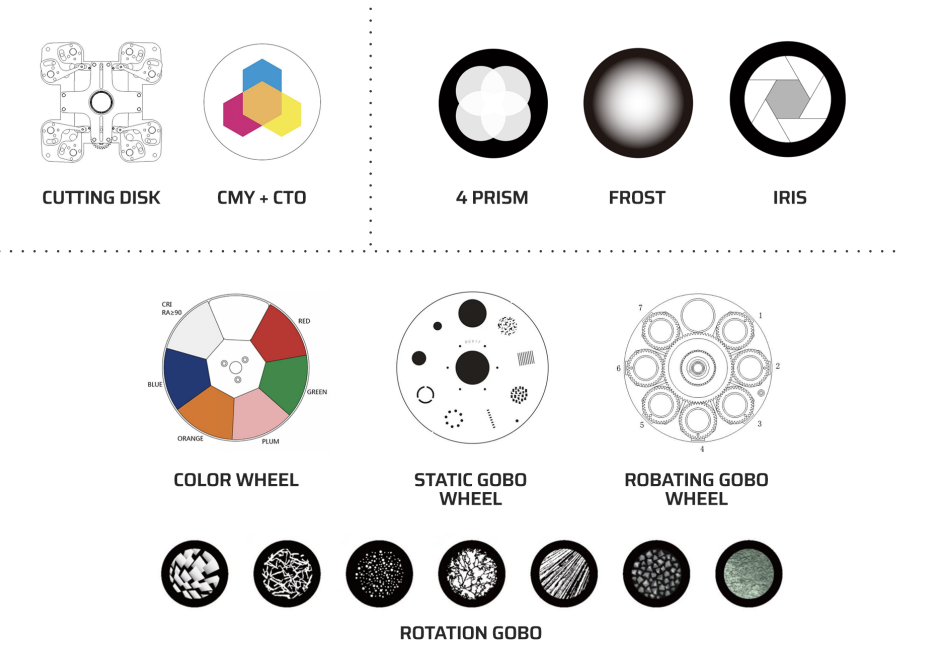

Gobo & Colors

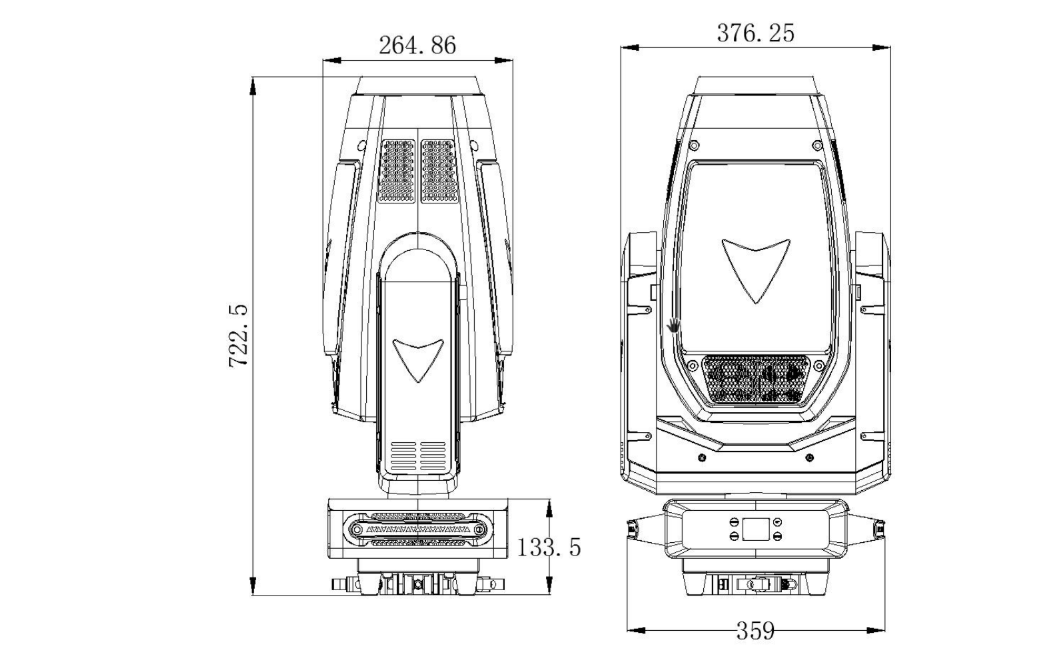

Architectural Dimension
Packaging
Cardboard Box
Box
Technical Documents
Preview Video
