Tech Specs
Light Source
10pcs of 60W 4-in-1 RGBW LEDs
Flicker-free operation for broadcast TV and film
Lifespan: >20,000 hours
Movement
TILT movement: 230° (8/16 bit)
Power Supply
AC 100–240V, 50/60Hz
PowerCON IN/OUT with switch and fuse
Power Consumption: 800W
Colors
Pixel mapping with individually controllable LEDs
RGBW color mixing with sophisticated 4-color system
Optics
10 main lights can be controlled by a single point
Auxiliary light CW/WW/RGB is independently controlled by 24 segments
Control
DMX Channels: 5 / 7 / 14 / 18 / 42 / 54
DMX Protocol: DMX512, RDM (Remote Device Management)
Operation Modes: Master-slave, sound-activated, auto
Cooling System
Advanced fan cooling system
Over-temperature protection
Dimmer/Strobe
1–25 Hz high-speed shutter/strobe effect with variable speed
0–100% smooth linear LED dimming with fine control
Size & Weight
Dimensions: 115 × 1000 × 270mm
Weight: 13.6 kg
Gobo & Colors

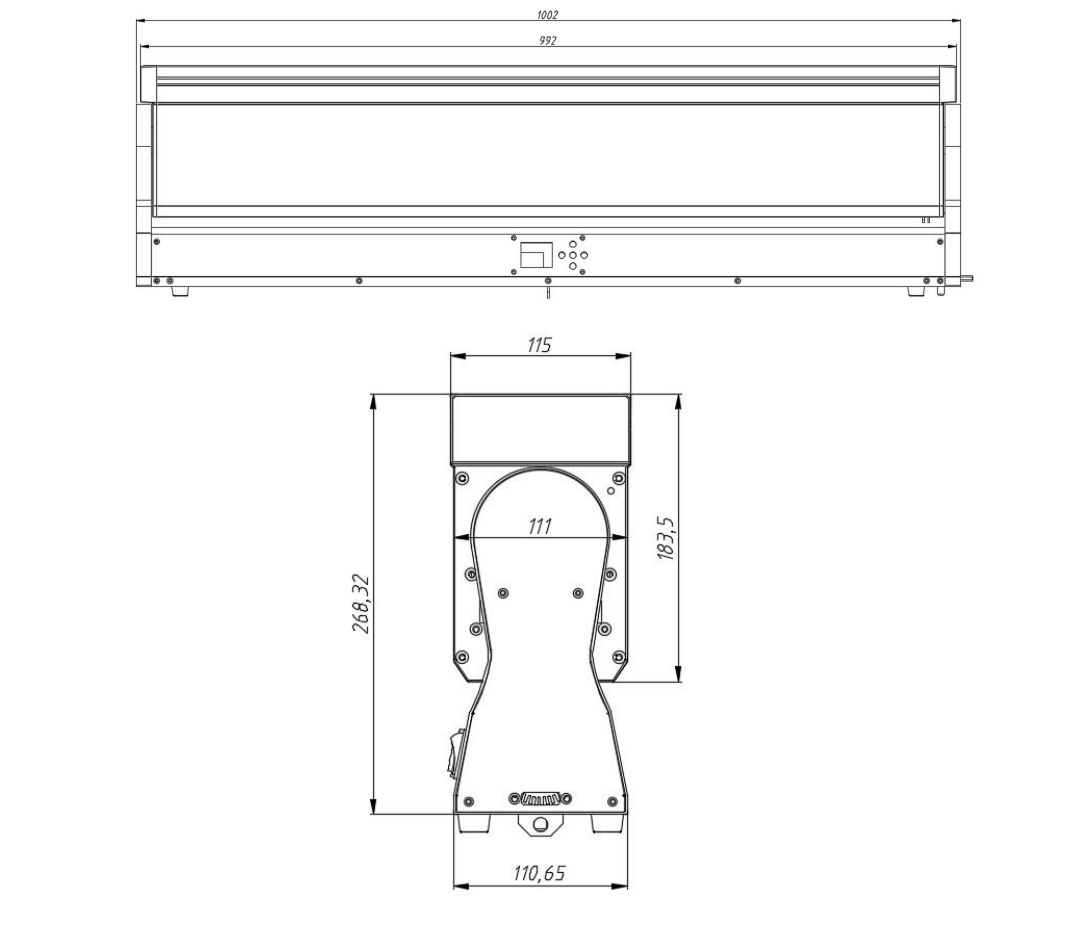

Architectural Dimension
Packaging
Cardboard Box
Box
Technical Documents
Preview Video
