Tech Specs
Light Source
380W (Philips MSD Silver 380/2 LL)
Color Temperature: 7800K
CRI: 80
Lifespan: 4,000 hours
Movement
Pan: 540° (16-bit), Tilt: 270° (16-bit)
Quiet and precise 3-phase motors
Magnetic coding for accurate positioning
Power Supply
Input Voltage: AC 100–240V, 50/60Hz
Power Consumption: 520W
Colors
CMY color mixing system
15 colors on 3 wheels + 2 CTO filters
Prism
8-facet prism
4-row prism (stackable and rotatable)
Optics
Beam angle: 2°–50°
138mm diameter lens
Control
DMX Channels: 31
Control Modes: DMX512, Master–Slave, Auto, RDM
LCD Touch Pad
Cooling System
Advanced fan cooling system
Over-temperature protection for extended lamp life
Gobos
18 static gobos + open
9 rotating gobos + open
Effect
Frost filter for hybrid wash effect
Double strobe motor with variable speed
Dimmer/Strobe
0–100% smooth dimming
Variable-speed strobe effect
Size & Weight
Dimensions: 338 × 256 × 588 mm
Weight: 17 kg

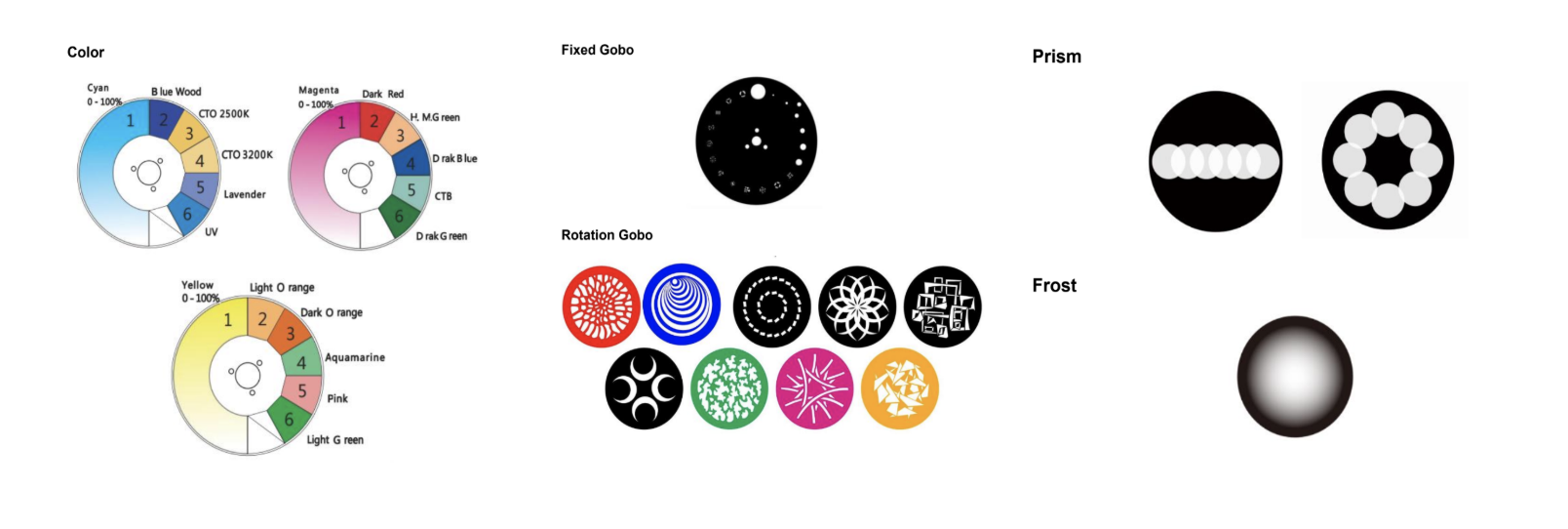

Gobo & Colors

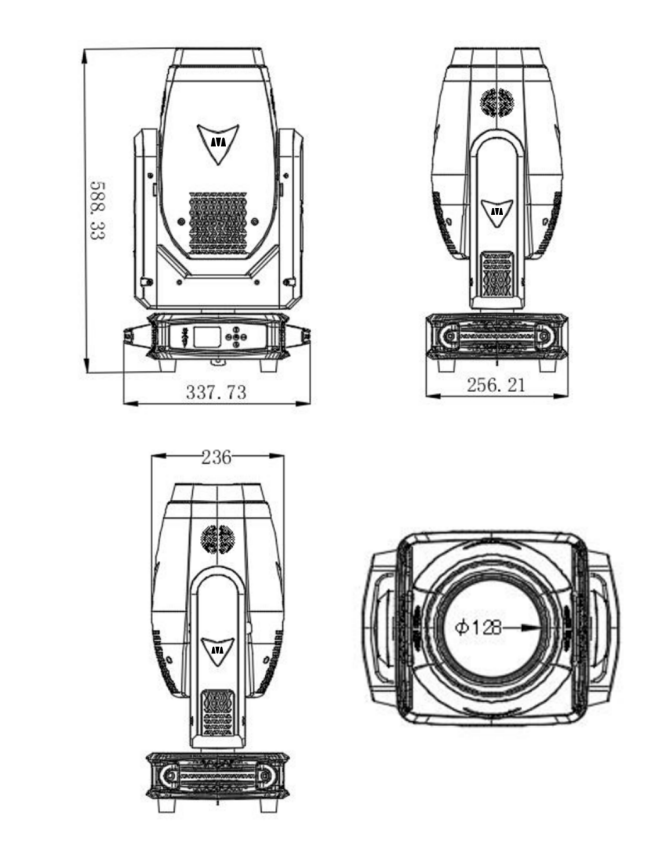

Architectural Dimension
Packaging
Cardboard Box
Box
Technical Documents
Preview Video
